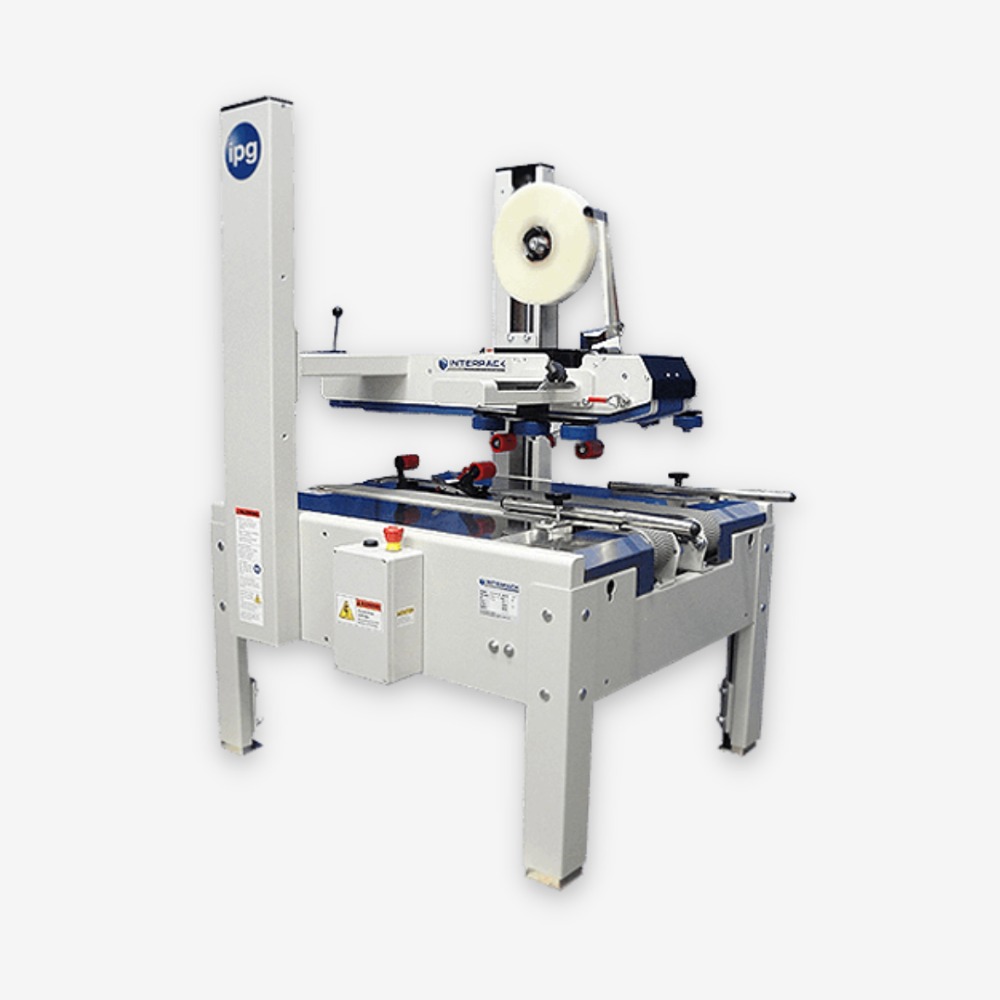

Interpack USA 2324-BB Uniform Semi-Auto Bottom Belt Drive Case Sealer

Interpack’s USA Series Case Sealers are adjustable, operator fed machines that process same sized Regular Slotted Containers (RSC). This bottom belt drive case sealer is the preferred style for processing heavier cases as well as when coding short height cases. Alternative drive styles are preferred for void fills, over fills and unstable narrow cases.

Every Interpack™ Case Sealer comes with an HSD 2000-ET II tape head with adaptive technology to provide optimal tape application and wipe down to each of the 3 taped panels of the case.

When you compare features, benefits and value, Interpack™ Case Sealers are the right choice for operators, plant

Features & Benefits

  • Economical bottom belt drive for maximum simplicity
  • Offset taping heads permit processing cases as low as 2” tall
  • Floating upper assembly processes compressible overfills
  • Self-centering horizontal guides for simple case size set up
  • Preferred bottom belt drive when coding short height cases
  • Standard ½ HP gear motor for 24/7 operation
  • Self-tensioning self-tracking belt drive simplifies belt replacement
  • Slide & lock upper head simplifies case size setup
  • Dual column for maximum processing stability
  • Reversible controls for left or right handed operation



Additional information



Box Sizes


Production Rate

Up to 100 boxes/day
