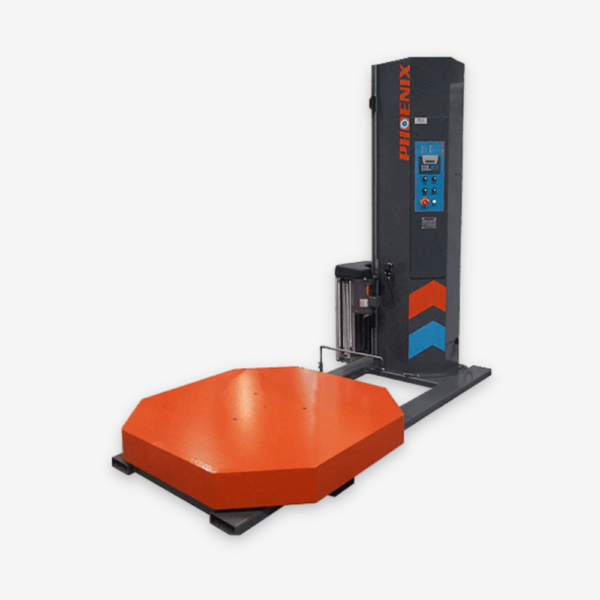

Phoenix PHP-2100 High-Profile Semi-Automatic Pallet Wrapper

Designed specifically for use with forklift trucks the raised turntable makes it easier for the operator to place the load on the table while allowing larger loads to overhang the table without getting jammed on a machine frame like a low profile.  Extremely operator friendly, the one-touch operator start and simple film roll changing makes this easy to use for all employees. stretch wrapper wraps even the toughest loads with very little stretch film. Fast, reliable, and built like a tank the PHP-2100 is safe to use and is covered by a full 5-year full coverage warranty.

Specs:

  • Production capacity – 45 loads per hour
  • Maximum load weight – 4,000 lbs
  • Maximum load size – 52″ x  52″

Flexible & Powerful Operator Controls:

  • Easy to use panel with operator friendly switches and knobs
  • 3 Pre-programmable wrap cycles for different load types
  • Variable speed control to match load stability

Easy Loading Powered Prestretch Film Carriage:

  • Reduce film costs with 245% Prestretch (10” off the roll = 34” on load)
  • Phoenix “Clearview” door lets operator see carriage operating
  • Dual-stage door lock with electrical interlock for operator safety
  • Pull through film loading takes just a few seconds
  • Chain drive prestretch for rugged construction.

Built Rugged to Provide Years of Service:

  • 5 Roller bearing casters for smooth, quiet operation
  • Steel construction withstands careless forklifts
  • Heavy gauge turntable handles heavy loads
  • Two-part epoxy paint resists wear

Larger Load Capacity Than Competitive Models:

  • 48” Octagonal turntable for 52”×52” loads (74” Load Diagonal)
  • #50 ANSI direct chain drive for reliable operation
  • Roller bearing turntable supports for 4,000 lb. capacity
  • Easy access grease fitting for support bearings
  • Built-in fork tubes for easy transport from front and back



Category:

Additional information

Manufacturer

Phoenix

Loads Per Day

Less than 50

Load Stability

Stable

Equipment Loaded By

Forklift

Pallet Weight

Up to 5,000 lbs
