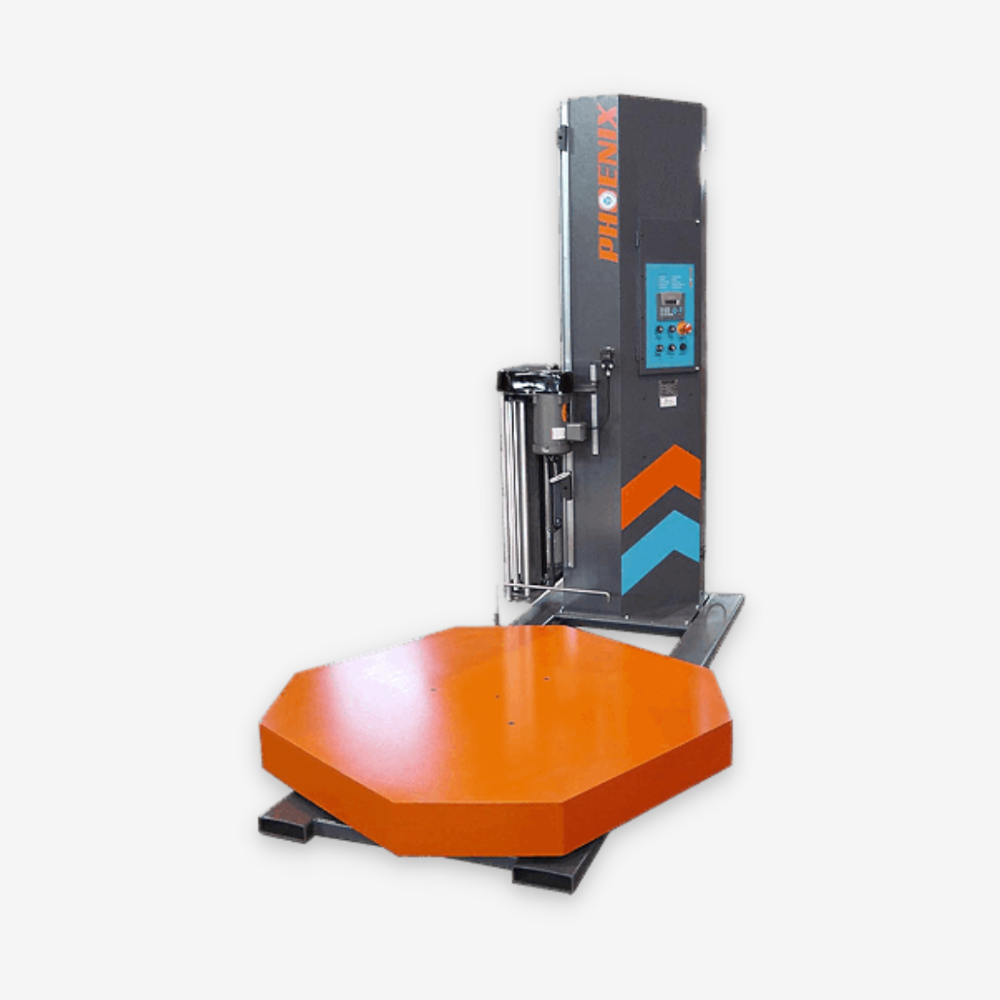

Phoenix PHP-2150 High-Profile Semi-Automatic Pallet Wrapper

The most popular durable stretch wrap machine for all requirements, can be Custom Engineered to meet specific applications. 5000 lbs Load Weight Capacity, 15 RPM Stretch Wrapping Speed. Fully Loaded control features for maximum flexibility.


Capacity: 56 x 56 MAX Pallet Size (80″ Load Diagonal) Largest Stretch Wrapping Capacity in its Class.
Speed: 15 RPM Stretch Wrapping Speed. The Fastest pallet wrapper in its Class.
Best in Class Wrapping Flexibility c/w Keypad Control provides all features as standard…. Including those not available (or an upcharge) on competitive models.

Complete Wrapping Flexibility Including:

  • 3 Wrapping Cycles: Wrap up, Wrap up/down, Top Cover Pause.
  • Reinforce Wrap and Cycle pause capability.
  • Keypad controls of all parameters.

Stretch Film Saving features such as:

  • Separate 1-9 top and bottom wrap count provides up to 15% Savings. Apply only the stretch film required at the top separately from the bottom compared to competitive models that applies a common amount to top & bottom regardless of need.
  • Separate up and down carriage speeds eliminates the time and wasted stretch film applied with competitor’s common speed control. (Up to 10% Savings).

Standard Superior Features

  • 5,000 lbs. weight capacity turntable c/w 7 Heavy Duty Casters on Welded Supports.
  • Variable Speed Drives control all motors for maximum flexibility.
  • Electronic stretch film tension control with Analog electronic Sensor provides the ultimate in feedback control.
  • Forklift portable from Front and Back of machine.
  • Heavy-Duty structural steel tubing and frame.
  • Steel cross member reinforcement in tower and turntable.
  • 8-3/4″ Turntable Elevation – Competitive models are typically 12″ to 13″.
  • Control Cabinet enclosed in tower.
  • Keypad controls of all parameters.
  • Automatic Load Height sensing photoeye is mounted in the stretch film carriage with adjustable track.
  • Guaranteed For Life Prestretch rollers with 245% prestretch ratio as standard.
  • 5 Year Warranty.

“Best in Class” Safety features:

  • Film loading Safety Shut-off switch automatically shuts down power during stretch film loading by Operator.
  • Easy Film Loading carriage with double lock door control for guaranteed locking.
  • Mushroom Twist & Pull E-Stop Button.

Stretch Wrapping Options:

  • 30″ Powered Pre-Stretch Film Carriage Upgrade.
  • 20″ Film Adaptor on 30″ Carriage.
  • Dark Load Special Auto-Height Photo Eye.
  • Extended Tower – 96″ Wrap Height.
  • Extended Tower – 104″ Wrap Height



Additional Information



Loads Per Day

Less than 50

Load Stability


Equipment Loaded By


Pallet Weight

Up to 5,000 lbs
