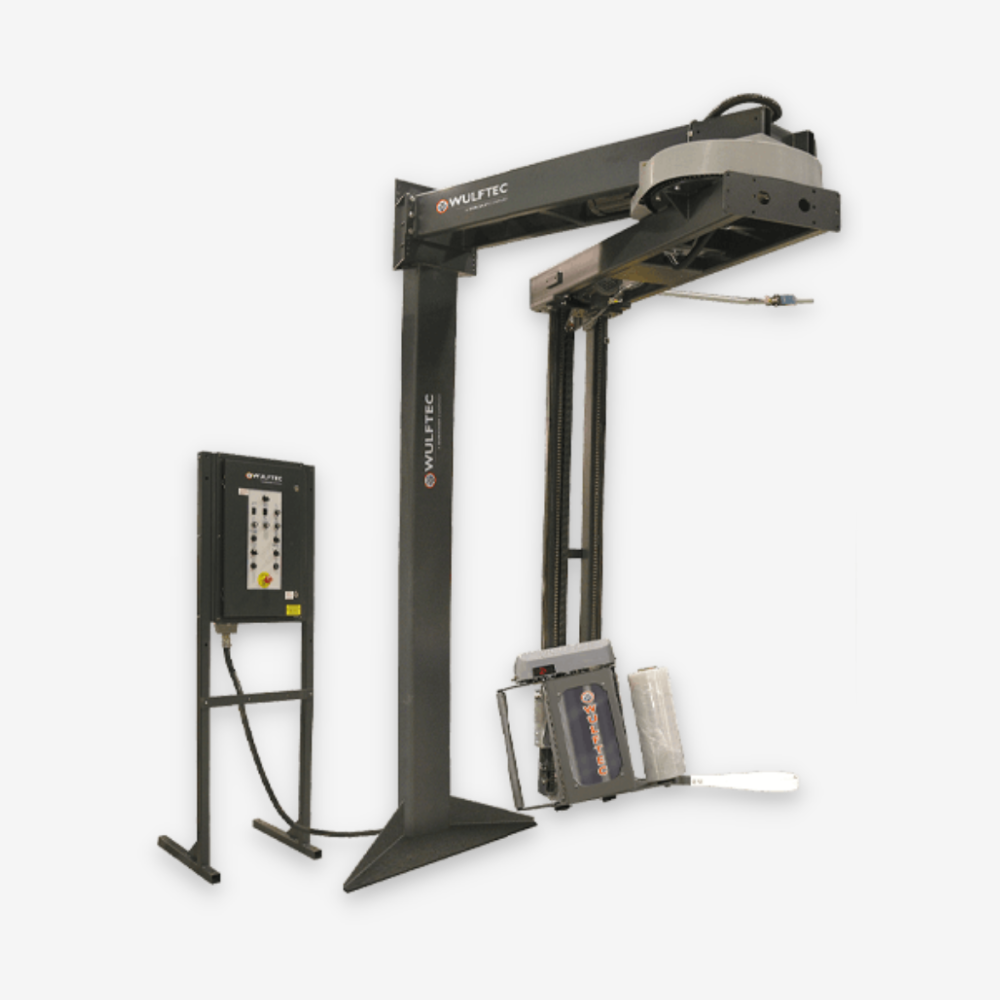

Wulftec WRT-100 Rotary Arm Stretch Wrapper

The WRT-100 model, an semi-automatic rotary tower as the ideal stretch wrapping solution for your unique needs

WRT Series:

•20” NO-THREAD® powered pre-stretch carriage with 50-300% pre-stretch
•25” ring GEAR bearing with pinion GEAR drive
•12 RPM variable speed
•Unlimited load weight capacity
•Heavy-duty structural steel construction
•Nema 4/12 control cabinet
-Superior protection against water and dust
-Quick disconnect for fast and easy installation


  • Production Rate – 50 loads per hour
  • Machine Dimensions – 135.5″ L x 130″ W x 120″ H
  • Electrical Requirements – 120 V/ 1ph / 60 Hz 15 A
  • Allen Bradley MicroLogix 1200 PLC
  • 24V control system
  • Current overload protection
  • NEMA 4/12 control cabinet (can be located up to 10′ from machine frame)
  • Auto height sensing photo eye
  • Power on/off switch and status light
  • Start/stop push button
  • Large emergency stop (push / pull type)
  • Manual carriage up/down function
  • Variable rotary arm speed (12RPM)
  • Separate up and down carriage speeds
  • Separate top and bottom wrap selectors



Additional Information



Loads Per Day

Less than 50

Load Stability


Equipment Loaded By

Forklift, Pallet Jack

Pallet Weight
