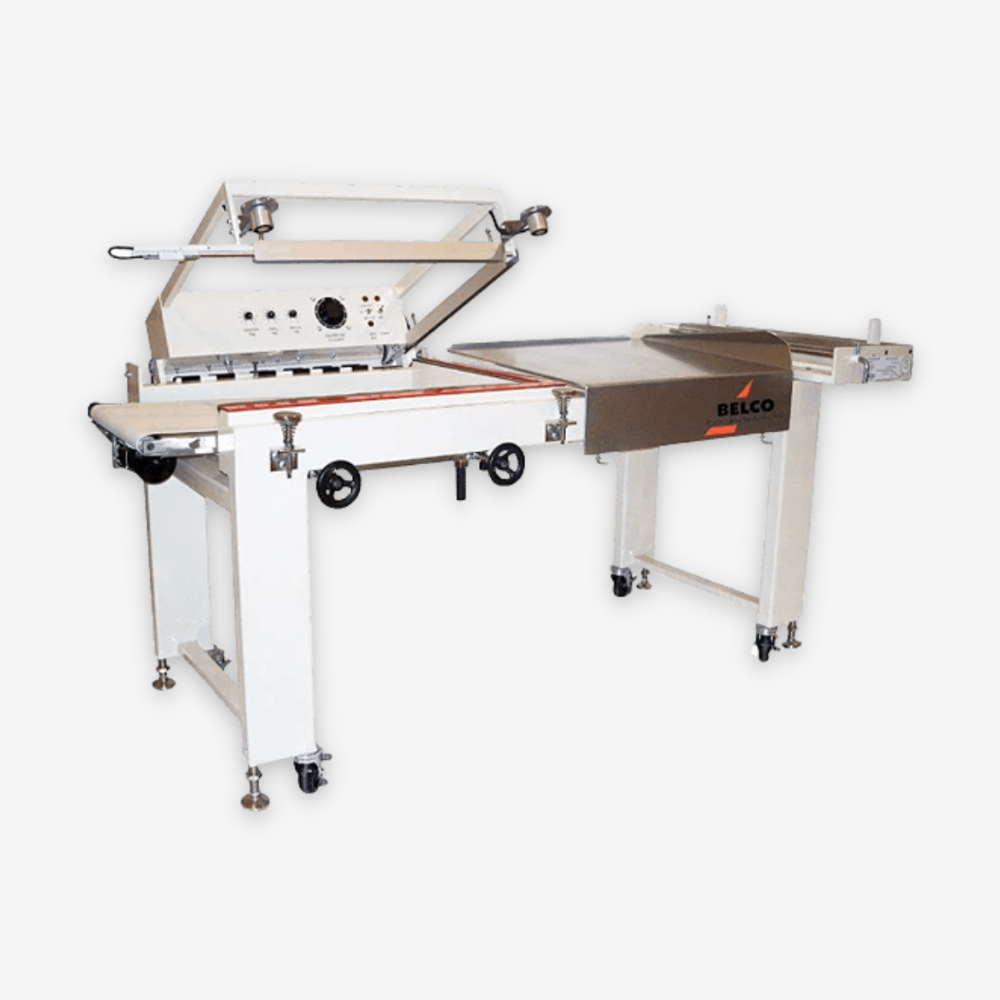

Belco ILS 2016

Belco L-Sealers features a welded tubular steel frame and sealing head design to maintain perfect alignment during the sealing process. This unique construction is superior to conventional assemblies that are simply bolted together.  This manufacturing process provides consistently strong seals, long machine life and years of trouble-free performance.

Belco Impulse Wire sealing technology employs a single Nichrome wire to create the front seal and side seals around your package. During the Sealing Cycle, the wire temperature is controlled by the Seal Wire Heat Adjust for a fixed amount of time which is regulated by the Impulse Timer. A Sealing Wire Sensor monitors the heat buildup in the wire so overheating and wire breakage during the sealing cycle is prevented. For the larger sealers and custom sizes, individual Seal Wire Heat Adjust controls for the front seal and side seal are used. An Impulse/Constant Heat switch allows the operator to choose which sealing method is best for the particular film being sealed.

Standard Features:

– Welded tubular steel frame and sealing head (with a 5 year warranty)
– Adjustable aluminum in-feed table with film opening horn
– Independent seal wire heat adjust and impulse timer
– Impulse or constant heat seal mode
– Sealing wire sensor prevents overheating
– Fused electrical protection
– Reversible seal base rubber and Teflon: no tools or tape required

– Adjustable Tilt Table/Conveyor

– Heavy-duty locking casters with leveling pads


Additional Information




Operator Fed (Semi-Auto)

Production Rate

Up to 15 packages/minute

Max Package Size

Up to 16"W x 22"L
