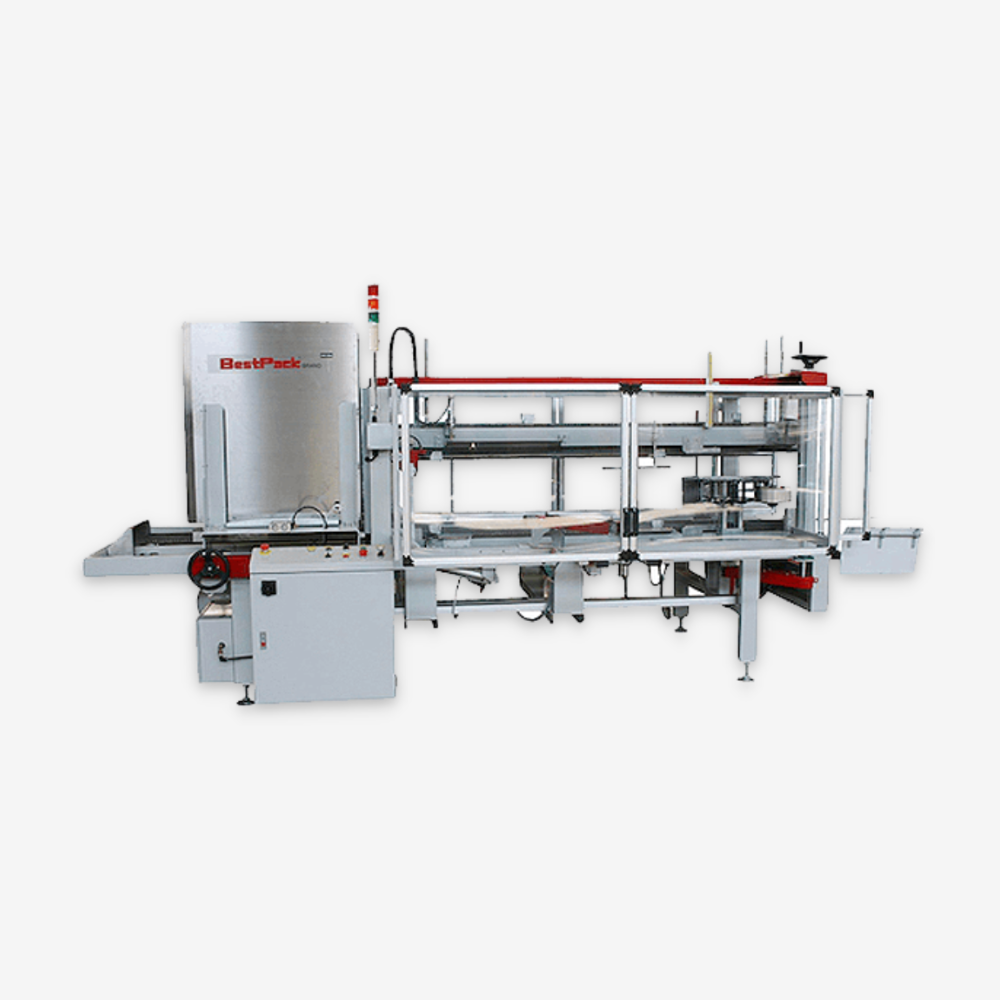

BestPack ESHB Automatic Straight Feed Suction Cup Erector

The model ESHB is an innovative high-performance carton erector/sealer. This erector is built for heavy usage with quick and simple carton size changeover. The adjustments for the hopper width, carton width, and carton height are fine-tuned with easy-to-adjust screw drives. If you are looking for a simple yet heavy-duty built carton erector, this is a must-see system.

SPECIFICATIONS

  • Speed: Up To 15 Cartons/Min.
  • Power Requirements: 110 Volts 60 Hz – Single Phase
  • Air Requirements: 100 Psi, 10 SCFM
  • Shipping Weight: 2,425 Lbs.
  • Machine Dimensions: (126.0″) X (75.0″) X (79.0″)
  • Carton Range: (6.0″ – 25.5″) X (6.0″ – 14.0″) X (6.5″ – 20.0″)
  • Conveyor Height Adjustment: (22.5″ – 30.0″)



Category:

Additional information

Manufacturer

BestPack

Class

Fully Automatic

Production Rate

Up to 15 cases/minute
