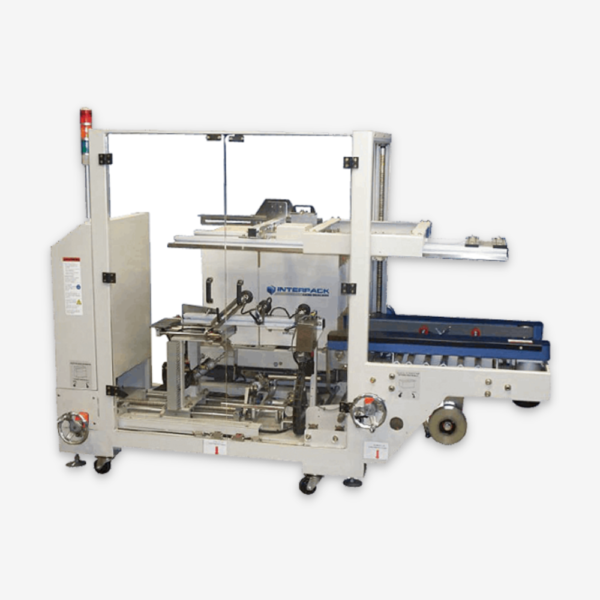

IPG CE-12P Case Erector

Interpack’s CE Series Vertical Format Case Erectors are operator free, automatic machines that will form a knocked down uniform-sized case, fold the bottom four flaps, and apply pressure-sensitive carton sealing tape to the bottom of RSC or HSC style cases.

These value-priced machines offer significant productivity gains over manual case erecting as well as addressing the effects of strain-related illness or repetitive motion issues.

These vertical format case erectors offer an expanded range of case sizes versus horizontal format erectors. These compact footprints conserve floor space while
improving productivity.

Features & Benefits

  • Processes up to 12 cases per minute
  • Folds four bottom flaps pneumatically in the stationary position
  • Rapid case size set up with no tools or change parts
  • Standard casters, case on-demand eye, low tape, and no tape detection
  • Analog counters simplify case size set up
  • Powered hopper has 48” of capacity (approx. 135-150 RSC cases)
  • Up to six vacuum cups positively withdraw the case from the hopper
  • Powered hopper lift
  • Visual and audible alarms for case erect failure
  • Spring-loaded side belt drive propels the case through case taping



Additional Information




Fully Automatic

Production Rate

Up to 12 cases/minute
