Additional Information
| Manufacturer | Wulftec |
|---|---|
| Loads Per Day | Less than 50 |
| Load Stability | Stable |
| Equipment Loaded By | Forklift, Pallet Jack |
| Pallet Weight | Up to 5,000 lbs |

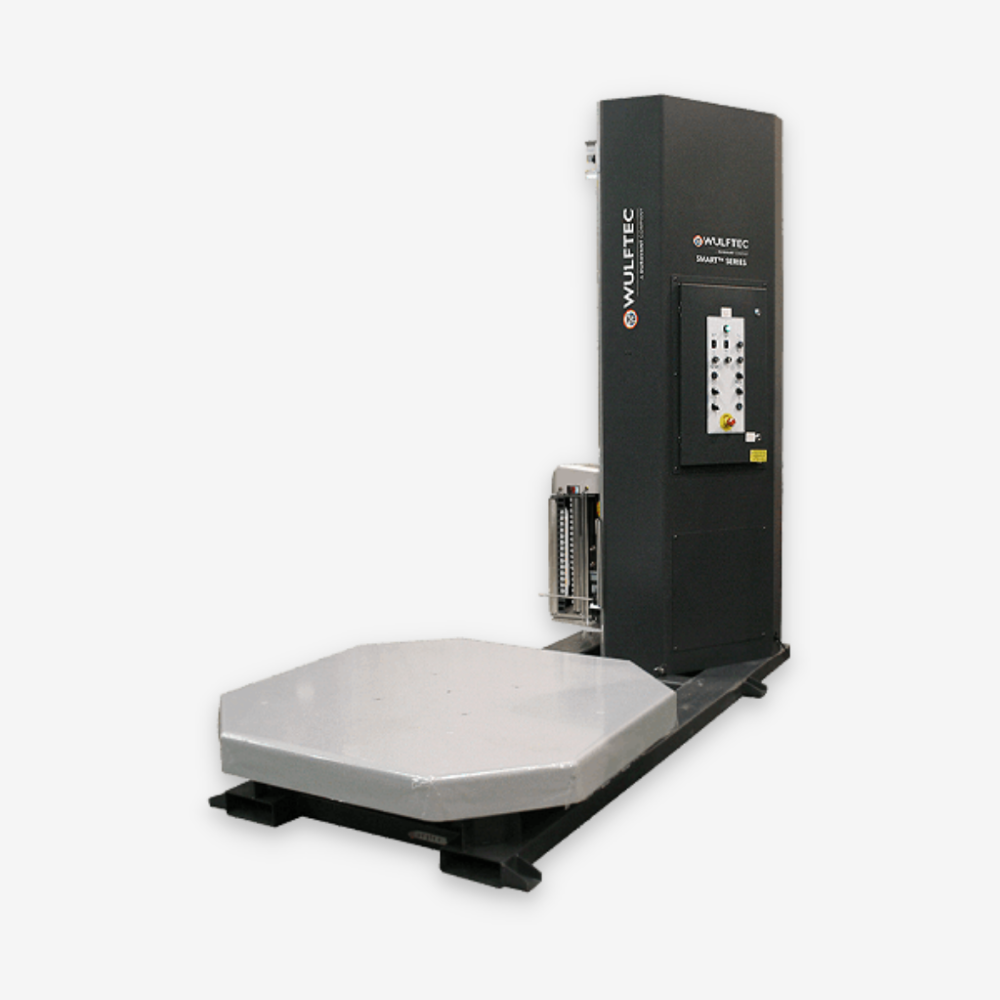

Wulftec SMH-200 Semi-Automatic Turntable Stretch Wrapper
The SMH-200 model, a standard base high-profile turntable as the ideal stretch wrapping solution for your unique needs.
High-profile standard base stretch wrapper.
Perfect for various applications.
Features:
- 5,000 lbs load weight capacity
- NEMA 4/12 control panel dust-tight and waterproof
- The control panel is UL508A approved
- 100% Structural Steel Construction
- Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
- Wulftec’s exclusive 20″ NO-THREAD® Powered Pre-Stretch Carriage (30″ optional)
- Easily available non-proprietary parts
- State-of-the-art electrical control panel with all finger-safe electrical components
- Carriage lifting chains enclosed inside the tower for operator safety
Specs:
- Production Rate: 55 loads per hour
- Machine Dimensions: 109.50″ L x 51″ W x 99″ H
- Load Weight: 4000 lbs
- Approximate Shipping Weight: 2200 lbs
- Electrical Requirements: 120 V / 1 ph / 60Hz 15A
