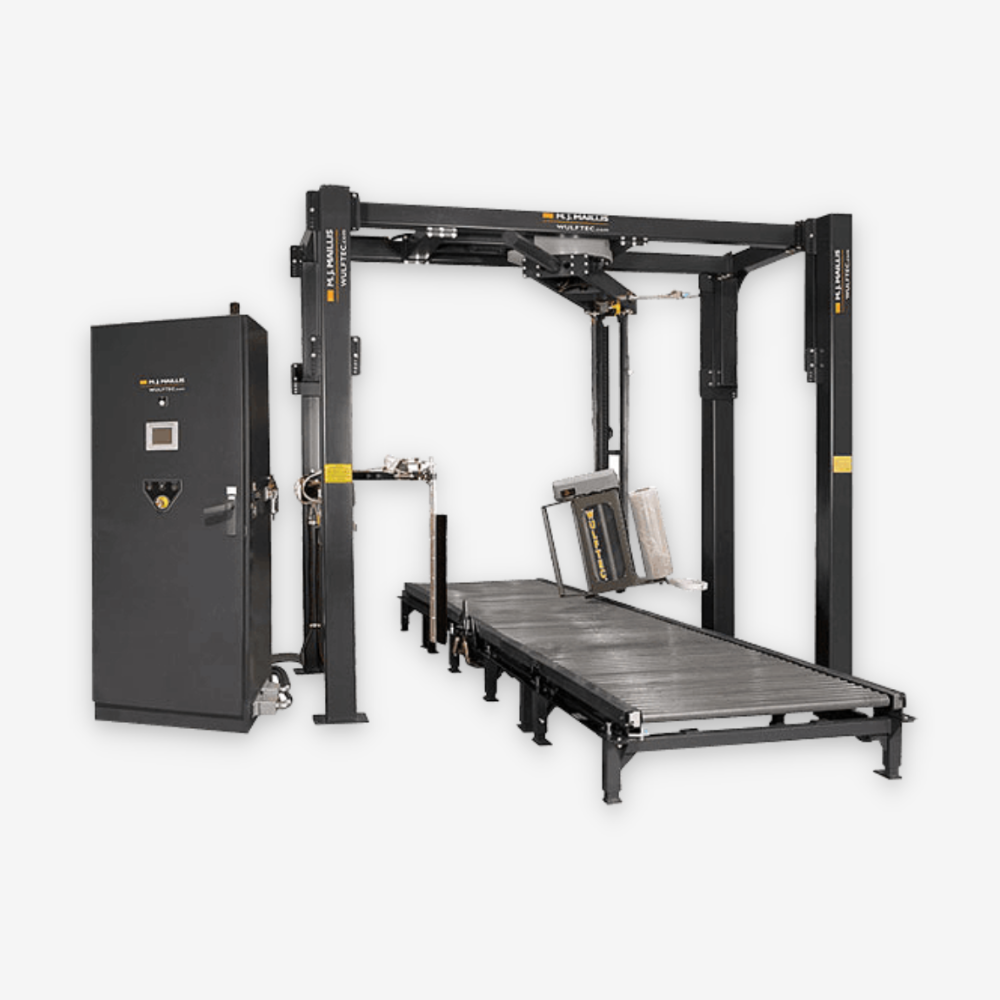

Wulftec WCRT-200 Automatic Rotary Arm Stretch Wrapper

The WCRT-200 model, an automatic conveyorized rotary tower as the ideal stretch wrapping solution for your unique needs.


  • 5,000 lbs load weight capacity (optional 6000 lbs)
  • The control panel is UL508A approved
  • 100% structural steel construction
  • 25″ ring gear with pinion gear drive
  • Automated remote lube station
  • Superior Electrical/Electronic Design including Allen Bradley SLC 5/03 logic control
  • Wulftec’s exclusive 20″ NO-THREAD® Powered Pre-Stretch Carriage (30″ optional)
  • Lifetime warranty on pre-stretch rollers blue compound
  • Readily available non-proprietary parts
  • Conveyor rollers 2 ½” diameter on 3″ centers for smooth operation
  • Motors speed control are made through AC frequency drives
  • Allen Bradley Monochrome Touch Screen – play an active part in avoiding operator errors by offering a great versatility for customized information and alarm diagnostic


  • Production Rate: 100 loads per hour
  • Maximum Load Weight: 5000 lbs(6000 lbs*)
  • Maximum Load Size: 48″ L x 48″ W x 80″ H
  • Machine Dimensions: 138″ L x 148″ W x 140″ H
  • Approximate Shipping Weight: 4500 lbs
  • Electrical Requirements: 230 V /3 ph /60Hz 20A
  • Pneumatic Requirements: 3 cfm @ 80 psi



Additional Information



Loads Per Day

More than 50

Load Stability


Equipment Loaded By


Pallet Weight

Conveyor capacity
