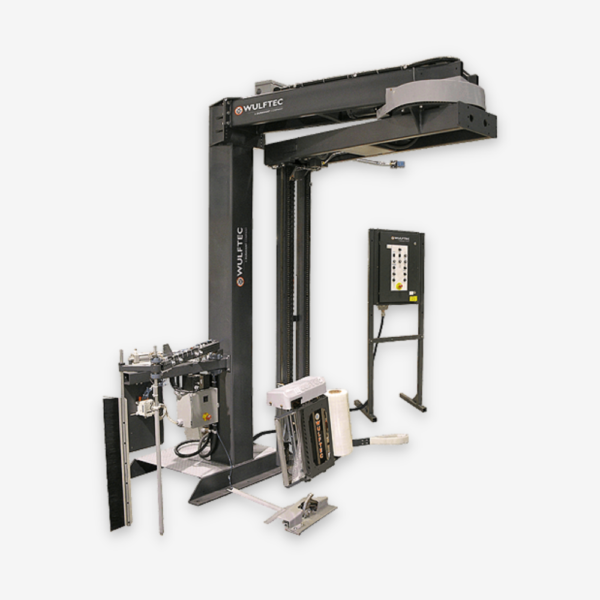

Wulftec WRTA-150 Automatic Rotary Arm Stretch Wrapper

The WRTA-150 model, an automatic rotary tower as the ideal stretch wrapping solution for your unique needs.

Features:

  • NEMA 4/12 control panel dust tight and waterproof
  • The control panel is UL508A approved
  • 100% Structural Steel Construction
  • Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
  • Wulftec’s exclusive 20″ NO-THREAD® Powered Pre-Stretch Carriage (30″ optional)
  • Easily available non-proprietary parts
  • State-of-the-art electrical control panel with all finger safe electrical components
  • Superior driving mechanism with heavy duty ring gear with pinion gear drive
  • Angled carriage to wrap approximately 2″ above floor level
  • Emergency stop sensor for arm path obstruction
  • Automated cut/clamp & wipe system.

Specs:

  • Production Rate: 50 loads per hour
  • Machine Dimensions: 165.50″ L x 130″ W x 117.50″ H
  • Maximum Load Size: 56″ L x 56″ W x 80″ H
  • Load Weight: Unlimited
  • Approximate Shipping Weight: 2500 lbs
  • Electrical Requirements: 120 V /1 ph /60Hz 15A
  • Air Requirements: 3 cfm @ 80 psi



Category:

Additional information

Manufacturer

Wulftec

Loads Per Day

More than 50

Load Stability

Unstable

Equipment Loaded By

Forklift, Pallet Jack

Pallet Weight

Unlimited
