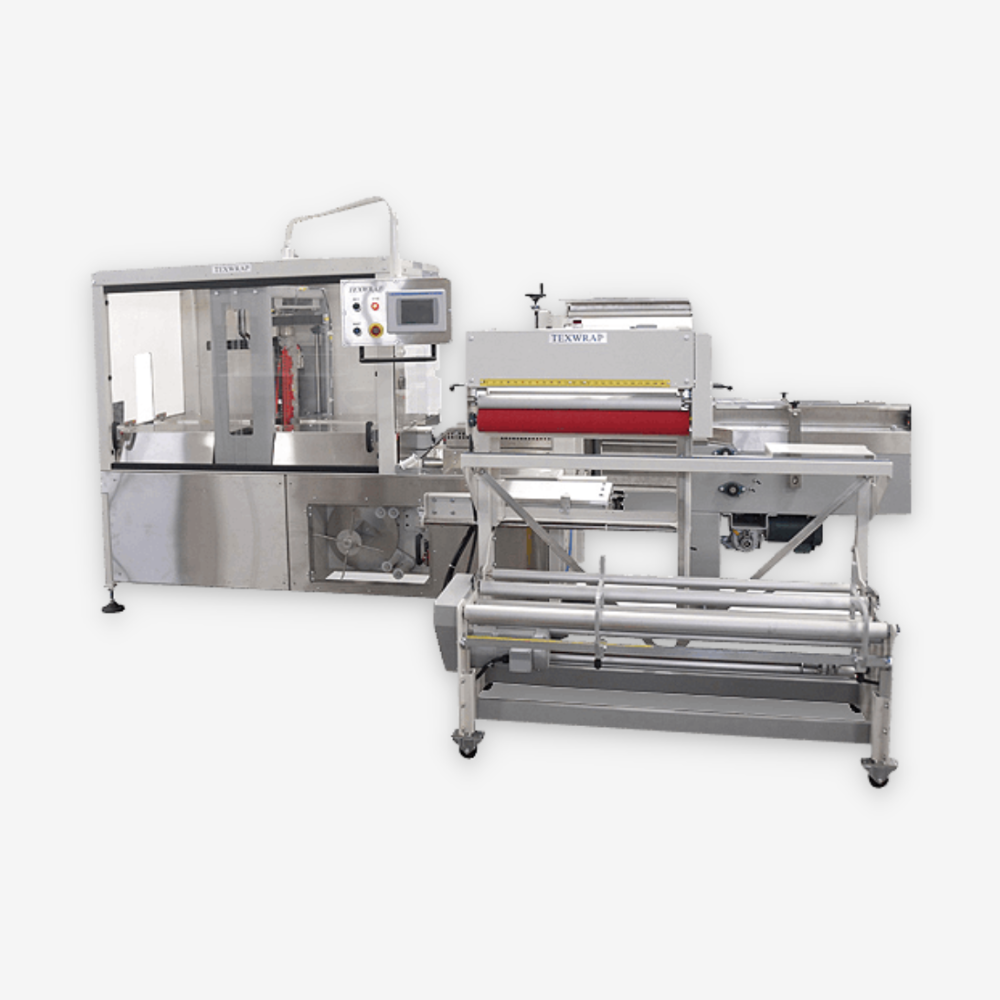

Texwrap STB-514OVS Vertical Orbital Wrapper

The Texwrap 514OVS and larger capacity 914OVS are the machinery solutions of choice for end-of-filling-line shrink packaging. Now products such as bottles, cans and jars can be wrapped while in the vertical position.

The sealing head on these wrapers is Texwrap’s patented servo orbital-motion head. This eliminates the need for the head to move with the product while the seal is being made which dramatically increases the throughput speed of the wrapper. In addition, they have the capability to infinitely vary the speed of the exit conveyor which allows it to be slowed momentarily as the seal is being made to relieve tension on the film for superior seals using the absolute minimum amount of film.

Texwrap vertical wrappers use a full bottom trim seal instead of a lap seal to securely enclose the product. In addition to providing an outstanding seal, this eliminates the unsightly seam across the side panel of the package common with other machines. Often used to multipack for retail sale, the precise product and film control of the 914 allows high speed operation with precise print registration.

Reduction of maintenance requirements is an important part of the design of every Texwrap wrapper. These systems use“Generation 3” servo technology meaning that it was designed from the ground up to integrate servo technology, PLC control, and the mechanical elements of the machine. The result is a fast, reliable, and flexible wrapper with minimal moving parts, minimal maintenance requirements and maximum performance.

In addition to a variety of custom infeeds, Texwrap also offers a product orientation system as an option for the 514 and 914OVS. Using servo-driven wheels, the orienting head grips the groups of products and spins them to a predetermined position so that the labels are precisely aligned making a very attractive and functional multipack.

If your application calls for the high speed wrapping of products in a vertical orientation, a Texwrap vertical wrapper is the answer.

Additional Information




Operator Free (Automatic)

Production Rate

Up to 50 packages/minute

Max Package Size

Up to ∞ L x 20"W x 10"H
